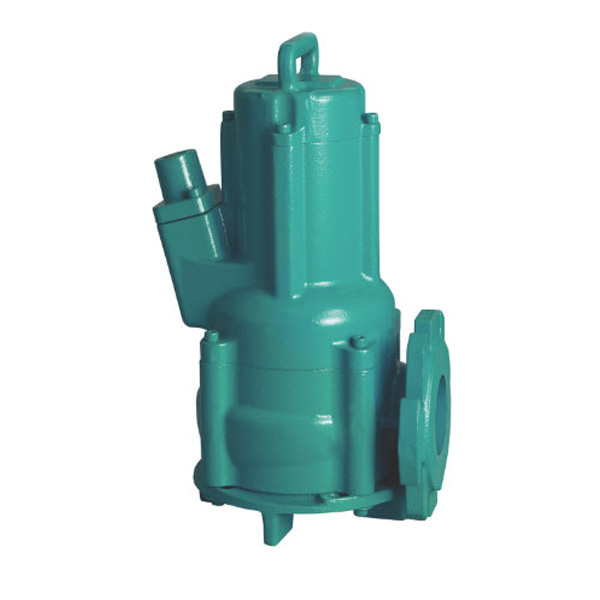

Tormac wastewater pumps are built to exacting specifications to ensure durability and ease maintenance. TDS series is an extremely versatile submersible pump for stationary and portable uses. Wastewater submersible pumps are built with vortex impellers and semi-open impellers.
The pump and motor are connected with a single drive shaft to eliminate any transmission loss. Wear-resistant ball bearings ensure better hydraulic efficiency and noiseless operation, whereas pump casing and brackets are made of high quality cast iron. All pumps and motors of these series are provided with dual mechanical seals with silicon carbide and carbon ceramic.
Shaft of high tensile stainless steel is used for transmitting the rated horsepower. All wastewater pumps are powered by a dry type asynchronous motor housed in a watertight housing with an insulation of B / F. Construction of motor frames and usage of quality raw materials result in high performance and low-temperature rise thereby increasing the life cycle of the motor. Thermal overload protected (Motor Protector) & float switches are incorporated in single phase motors.
In Stock
| Series | TD |
| Power Range | 0.37 – 2.2 kW |
| Speed | 2900 |
| Frequency | 50Hz |
| Power Version | A.C Single Phase – 220V, permanent Split capacitor (PSC) incorporated with thermal Over load protector. A.C. Three Phase 380 – 415V, DOL |
| Degree of Protection | IP – 58 |
| Duty type | S1 Continuous |
| Head Range | 16 m |
| Flow Range | 35m3/h |
| Outlet Size in inches | 1”, 1½”, 2”, 2½” |
| Maximum Liquid Temperature | 40°C |
| Class of Insulation | “B” / “F” |
| Direction Of Rotation | Clock Wise |
Tormac tiny sewage pumps, used in domestic and light commercial applications, Tormac tiny Sewage pumps are come with two variant TPS & TSS come with plastic and stainless stell body with thermoplastic impeler and the carbon ceramic mechanical seal, with special design considerations enabling solids to pass without clogging the pump.
