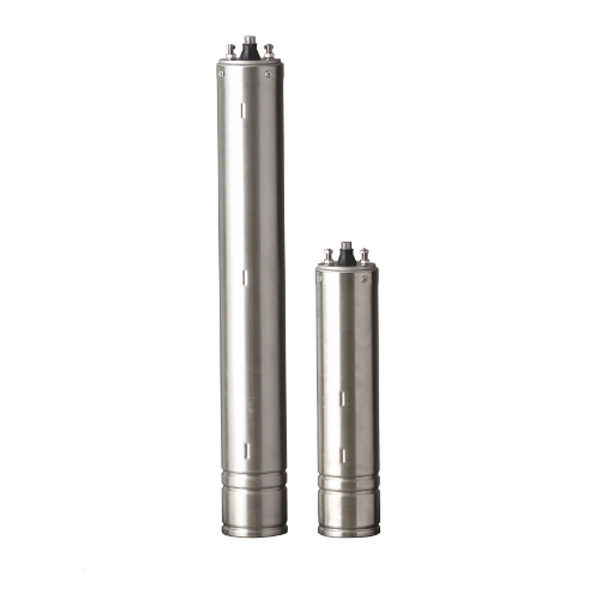

Submersible Motor Esteem Series 4″ (N-Series-60Hz)

Submersible Motor Esteem Series 4″ (N-Series-60Hz)

Categories: , Brand:

Quick description:

Tormac Elegant series submersible motors are ingeniously designed and developed employing latest engineering software’s, high-tech machinery & tools with the complement of cutting edge technology for hardwearing and maintenance free operations and to ensure relentless performance.

The electrical conditions such as voltage, frequency and the operating conditions are taken into account in designing the winding and cooling system. Tried and trusted indigenously improved design, combined with the most optimized efficiency in electromagnetic design exceptionally ensures trouble free performance. The integrated and most modern quality assurance systems used at every stage of production and flawless workmanship lead to sustained and consistent operation.

Tormac Elegant series motors are squirrel cage, Non toxic liquid filled and liquid cooled non rewindable type. The winding of these two pole motors are made of high quality enameled copper wire. The stator shell, housings shell & motor base are made of fabricated S.S 304/316 which prevents the motor from corrosion.

These motors are pre-filled with environmentally safe edible grade oil which acts as a lubricant. A uniquely designed angular contact ball bearing to with stand high thrust capacity and good quality shaft seals are used to enhance the strength & durability. All single phase motors are supplied with suitable control boxes. All Tormac motors are produced in accordance with ISO 9001 standards and mounting dimensions with NEMA standard.

Availability:

In Stock

Compare

Technical Data

Specifications Nominal Diameter     (4”)
Rated Output & Voltage 0.37kW to 1.5 kW – 1Ph, 230V, 0.37kW to 7.5kW – 3 Ph, 380V
Rated Speed 2900
Voltage Tolerance +6%
Protection IP 68
Rotation Sequence CCW        – 1Ph Electrically Reversible –  3Ph
Outer Diameter 96 mm
Duty S1 (Continuous)
Linear flow 0.15m/sec
Liquid Temperature 38˚C max
Switching Frequency 30 Times/Hour
Thrust load 0.37kW to 0.75kW – 1500N 1.1kW to 4kW – 2500N 5.5kW to 7.5kW – 4500N
Mounting Dimensions NEMA Standard
Starting Method 1 Ph – CSR / CSCR, 3 Ph – DOL
Motor Lead out type Removable type – 4 core
Class of Insulation F

Applications

    • Agriculture
    • Mining
    • Industries
    • Residential
    • Fire Fighting and Dewatering
    • Construction & Building Services
